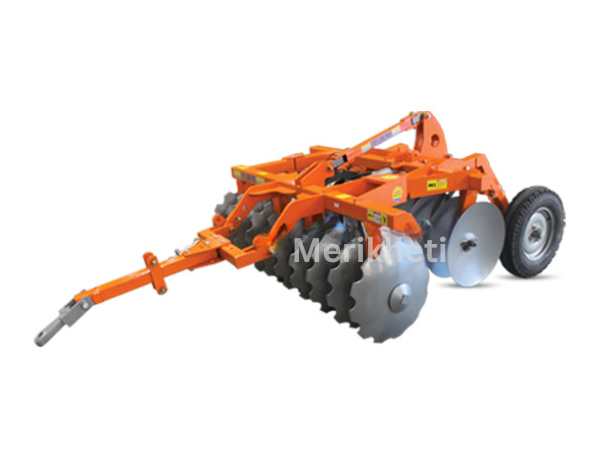

Compact Model Disc Harrow Medium Series FKMDCMDHT-26-20

Brand : FIELDKING
Model : FKMDCMDHT-26-20
Type : TILLAGE
Category : HARROW
Power : 70-80

Compact Model Disc Harrow Medium Series FKMDCMDHT-26-20

 MAIN FEATURES

  •  Used in open field working for the superficial ploughing, for the shattering of clods, preparation of soil for sowing, burial of organic substances & remains.
  •  It can be used in both forms i.e. mounted as well as trailed.
  •  High quality boron steel disc with 48-52 HRC hardness.
  •  Tillage depth of the harrow is 152-203 mm.
  •  Easily transportable as it gets easily attached and mounted.
  •  Adjustable gang axles angle up to 46
  •  Hydraulic operated lifting of harrow with tyre to reduce human efforts

Compact Model Disc Harrow Medium Series FKMDCMDHT-26-20 Full Specifications

Compact Model Disc Harrow Medium Series FKMDCMDHT-26-20 Implements

Working Width(Mm/Inch) :
Working Depth(Mm/Inch) :
No. of Blades :
Gang Bolt/Axle (Mm/Inch) : 32/1.3 (SOLID SQ ROD)
No. of Discs : 20
Type Of Disc : NOTCHED DISC IN FRONT GANG & PLAIN DISC IN REAR GANG
Disc Diameter (Mm) : 610 X 4.5 T (24) OR 660 X 6T (26)
Width Of Cut ( Mm/Inch Approx) : 2345/92
Distance Between Disc (Mm/Inch) : 228/9
Tyre Size :
Bearing Hubs : 8
Weight(Kg/Lbs) : 1275/2811
Weight With Dead Weight ( Kg ./Lbs.Approx.) :
