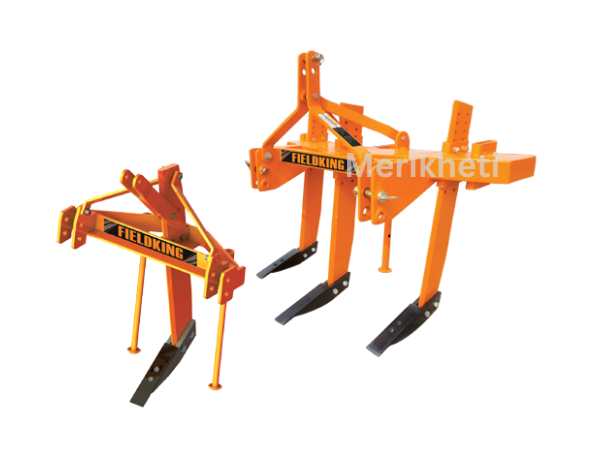

Sub Soiler FKSS - 5

Brand : FIELDKING
Model : FKSS-5
Type : TILLAGE
Category : SUBSOILER
Power : 100-135

Sub Soiler FKSS - 5

MAIN FEATURES



  • The sub soiler are deep tillage implements specially designed for breaking up hard pan layers and loosening the subsoil allowing better drainage, root growth and mineral osmosis.
  •  Optional wide range of roller/ crumbler available, which helps in breaking bigger lumps to smaller clods. Also it helps in depth control and steady run of the sub soiler.
  •  Adjustable depth & width of ploughing available for 2, 3 & 5 arm sub-soiler.
  •  Optional pipe layer attachment available for 1 arm sub soiler.
  •  Depth can be adjusted by top links.
  •  It can plough up to 550 mm deep
  •  The heavy duty pointed chisel
  •  Optional crumbler available in 3 & 5 arm sub soiler
  •  Shear bolt protection available in 5 arm sub soiler

                  Sub Soiler FKSS - 5 Full Specifications

                  Sub Soiler FKSS - 5 Implements

                  Tillage Width (Mm/Inch) : 1810/71
                  No. of Tynes : 5
                  Working Depth(Mm/Inch) : 550/22
                  Weight With Crumbler ( Kg .Lbs.Approx) : 790/1709
